Part Design for 3D Printing on a Cube

bracket_originalI’ve been really enjoying my Cube printer, but it has not been without its learning curve.  Like any part design, you need to design the part with the manufacturing process in mind, and I’m learning quite a bit about extruded filament part production.

One issue is that large parts with thick sections tend to warp.  The Cube software provides an option for a raft – basically a lattice of thin lines laid down first, providing a stable bed upon which to build the part – but this greatly increases the post-processing time.  Namely, you need to scrape or sand off the raft.  It’s not a huge deal but does waste material and time.

Consider the bracket design shown above.  It’s simple enough, with a uniform cross section and was designed to be printable without needing supports (thin webs of material to support overhangs and such).  However, when printing, this part would warp and curl, forcing me to abort the print.

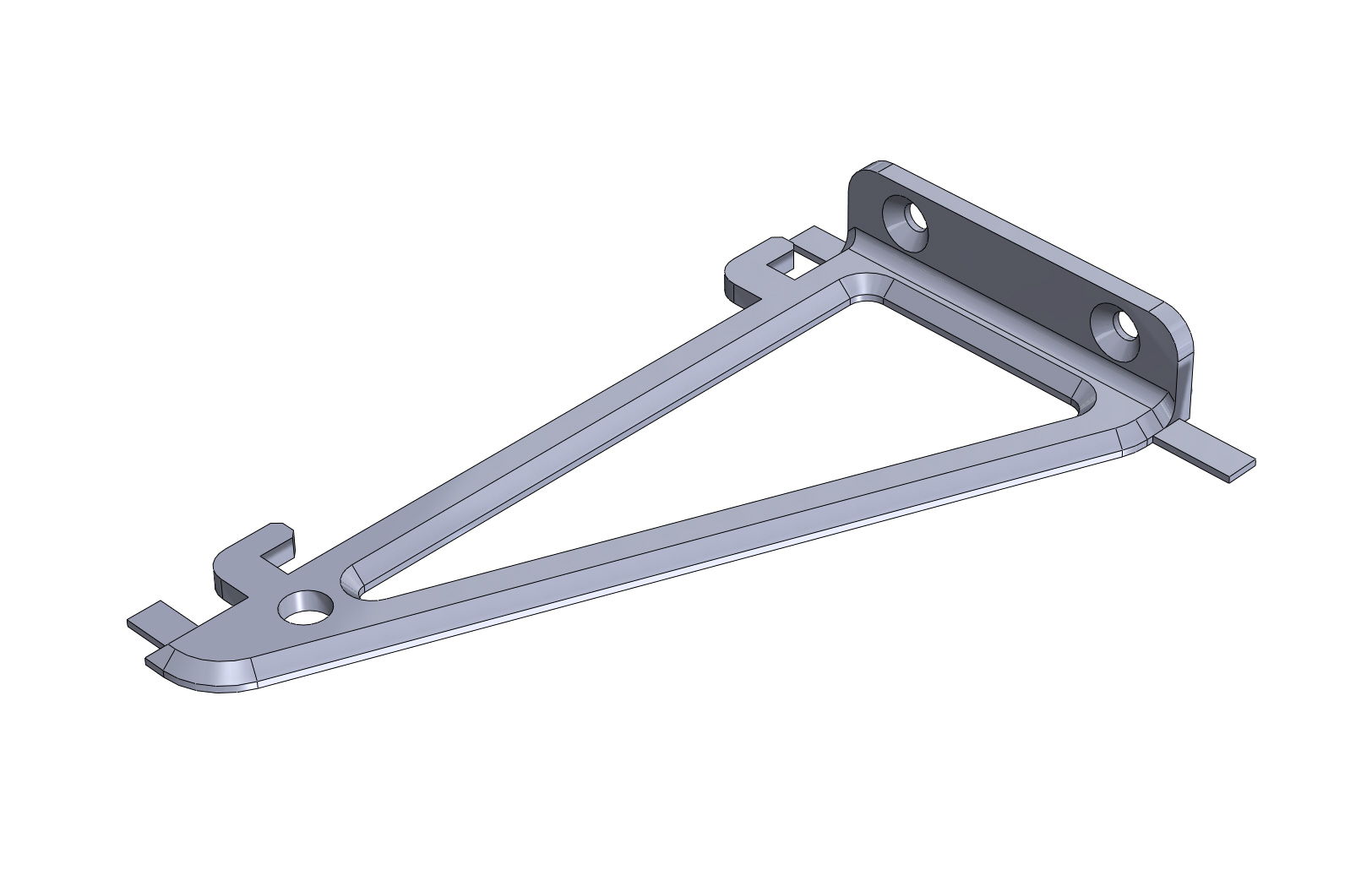

To address this, I did a few things.  First, I added thin tabs at the corners to help hold those down.  The principle is similar to the raft, but much easier to clean up (just cut them off – very quick and clean).  This alone did not produce a repeatable, printable part.  So, I added large chamfers at all edges, to reduce the part thickness and reduce warping.  This did the trick, and I was able to repeatedly print this (I’m using ABS, for what it’s worth).  Here’s what the final design looks like:

bracket_mod

As I learn more, I’m just not seeing how this technology is ready for mainstream home use like some articles seem to suggest.  You need to be a tinkerer and know your way around CAD to get parts that are really going to do what you want.  For that type of person though, this printer is fantastic!  I’ve been able to iterate prototype parts much quicker than before and am producing better designs, faster.

3D Printing Options

new_cubeJoy of joys…I finally have my own 3D Printer!  I’ll be writing much more about it soon, but in the meantime, if you’re interested in this stuff, check out this article at MAKE, it’s their self-labeled ‘Ultimate 3D Printer Buyer’s Guide‘.  The options are many, though in the end, I opted for a lower end consumer oriented machine, as I don’t see the others filling my occasional need for professional quality prototypes.  The machine I bought is the Cube printer from 3D Systems.  The price was a bit high compared to the more DIY type options, but I opted for that as it’s more likely (I felt) to be a true plug and play, hands off sort of machine.  I’ll be using it for quick, rough protos, though I expect I’ll still depend on vendors for higher quality prototypes at times.  A perfect combo, really.  Stay tuned for more on the Cube…I’ve been using it for only a couple days now and am learning a lot!
